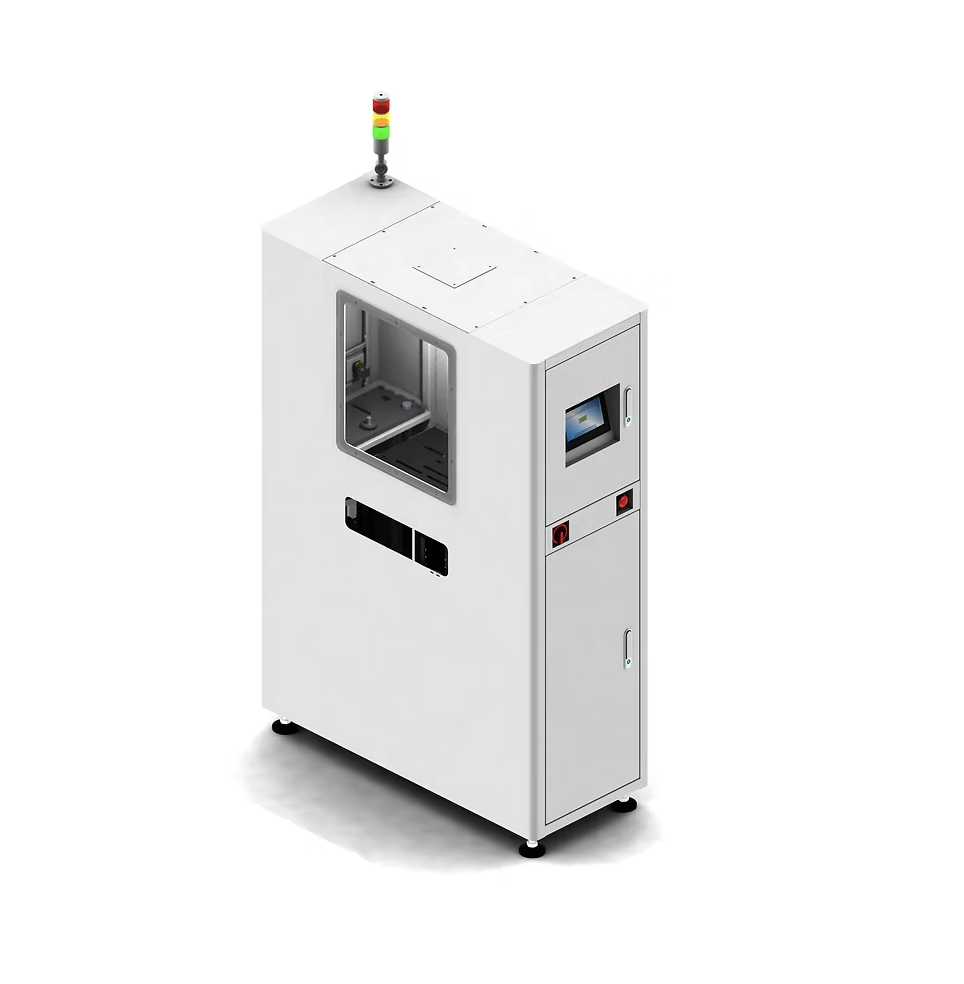

Belt Buffer
BI-350E-ST
Used in SMT line after printer as buffer function, stores up to 24 PCBs. It can control FIFO or LIFO (first in first out or last in first out) with NG buffer function. It can disable the memory function of any layer on the touch screen.
Specific Technical Details
| Parameter | BI-350E-ST |
|---|---|
| Transport direction | Front fixed, from left to right or right to left (option) |
| AC Power | AC220V/50-60HZ(single electric box control) |
| PCB Edge | 3MM |
| Transport Height | 900+50/-20mm |
| Transport Rail | Special aluminum rail, use 4.8mm flat belt for transfering |
| PCB Loading Weight | Under 2KG |
| Pusher Cylinder | Each AIRTAC single axis cylinder on both right and left side |
| Roof Cylinder | Each AIRTAC dual axis cylinder on both right and left side |
| Transport Motor | Step motor |
| Control System | Omron PLC and Panasonic sensor |
| Control Panel | Weinview touch screen |
| Frameworks | 3.0mm metal sheet welded, with PC color coating on the surface |
| Communication | Standard SMEMA |
